Steel Drywall Frame

The K Series Drywall frames are designed for light to maximum duty applications in both commercial and institutional buildings.

Standard jamb compression anchors and a unique tab/lock corner design for knock-down (KD) assembly assure that the K Series drywall frame installs in minutes on finished drywall construction. They are ideal for light to heavy duty applications in commercial and institutional buildings.

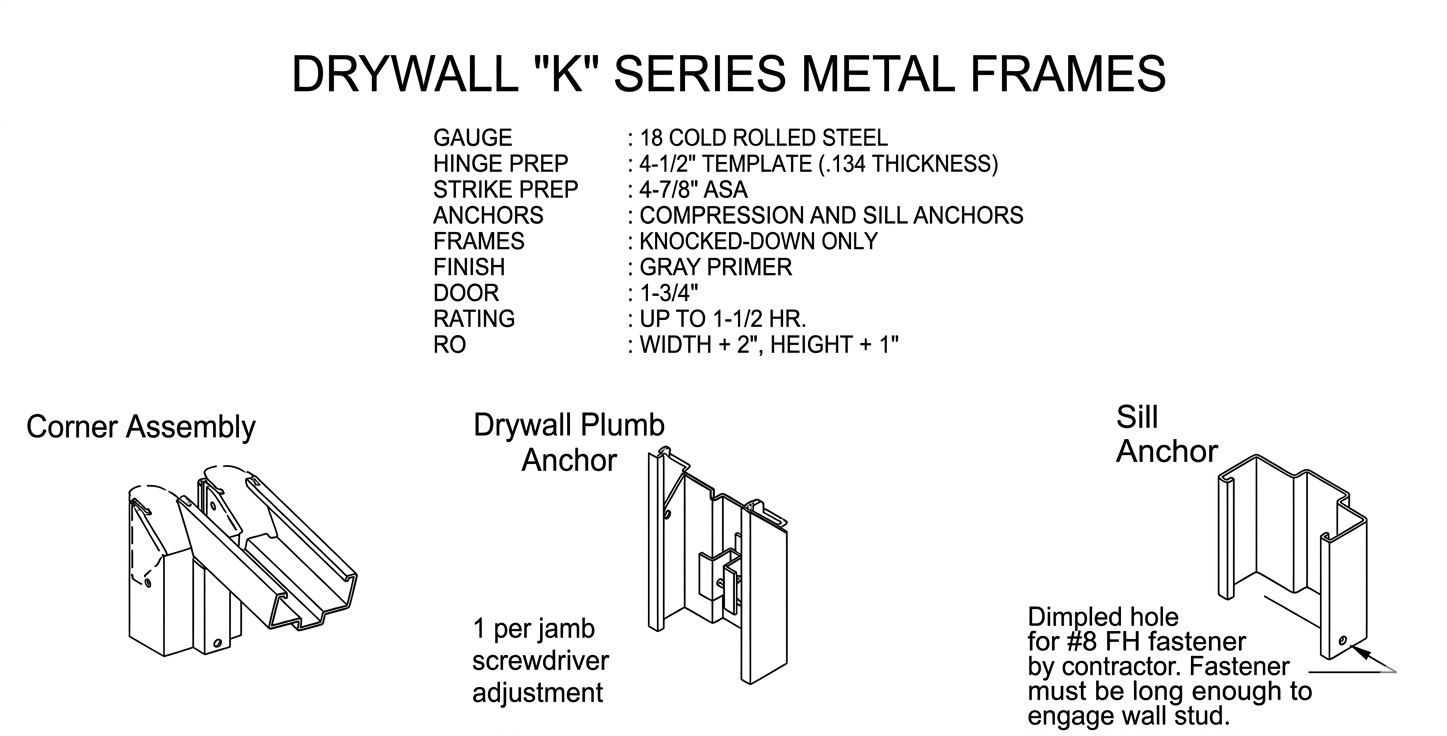

• Die-mitered corner connections lock together once the frame is installed;
• tab/lock design:
  Prevents head from rising
  Keeps head and jamb members in alignment
  Keeps miter tight
• Includes wedge-lock corner clips; screws are included to secure miter
• Compression anchors for quick installation and tight adjustment in the opening
• Factory prepared for field-installed silencers
• K Series: sill attachment is made through the frame face, directly into the wall sill runner; bottom of frame face is supplied with factory countersunk holes for screw attachment
